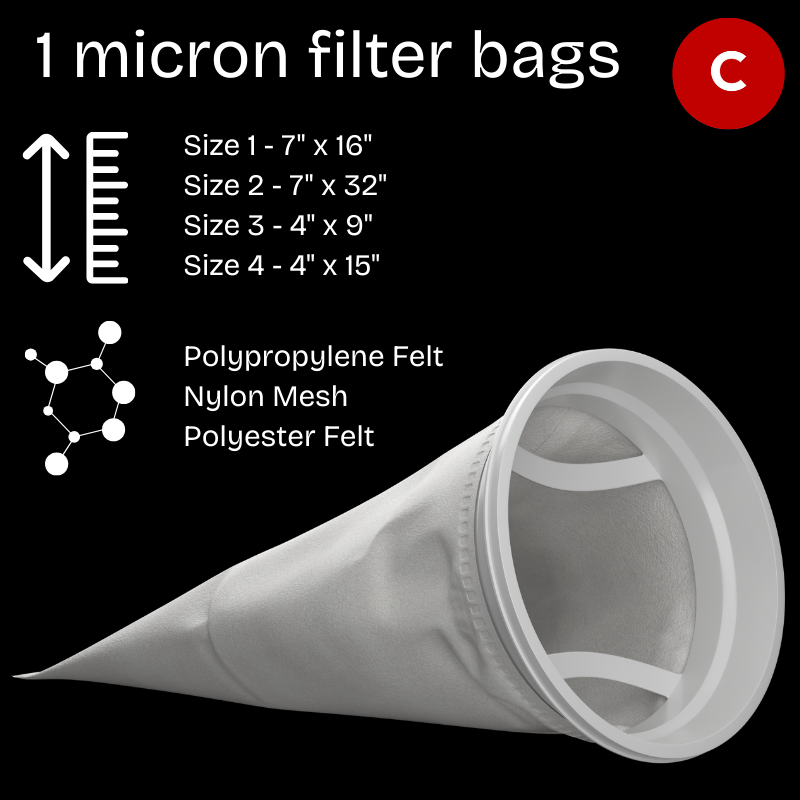

Available Sizes & Specifications of 1 micron filter bags
(Flow rates are for felt bags only and water applications)

Size 1 - 1 Micron Filter Bags (7" x 16")
Diameter: 7" (177mm)
Length: 16" (410mm)
Filter Area: 0.25m²
Volume Capacity: 8L
Flow Rate Capability: Up to 18 m³/hr
Micron Rating: 1 micron

Size 2 - 1 Micron Filter Bags (7" x 32")
Diameter: 7" (177mm)
Length: 32" (815mm)
Filter Area: 0.50m²
Volume Capacity: 17L
Flow Rate Capability: Up to 36 m³/hr
Micron Rating: 1 micron

Size 3 - 1 Micron Filter Bags (4" x 9")
Diameter: 4" (103mm)
Length: 9" (230mm)
Filter Area: 0.05m²
Volume Capacity: 1.4L
Flow Rate Capability: Up to 4 m³/hr
Micron Rating: 1 micron

Size 4 - 1 Micron Filter Bags (4" x 15")
Diameter: 4" (103mm)
Length: 15" (385mm)
Filter Area: 0.10m²
Volume Capacity: 2.5L
Flow Rate Capability: Up to 9 m³/hr
Micron Rating: 1 micron

Media Options for 1 Micron Filter Bags

Polypropylene Felt 1 Micron Filter Bags
(CB-PPF) Depth Filtration

Key Features:

• Multi-layer felt construction for extended service life
• Temperature Rating: Up to 80°C
• Construction: Thermally welded seams for maximum integrity
• Finish: Glazed surface prevents fibre migration
• Food Contact Safe: EC Regulation 1935/2004 compliant

Nylon Mesh 1 Micron Filter Bags (CB-NM) Surface Filtration- On
special order

Key Features:

• Monofilament mesh with precise 1 micron openings
• Temperature Rating: Up to 80°C (collar), 120°C (SS ring)
• Construction: Reinforced stitched seams
• Chemical Compatibility: Superior solvent resistance

Polyester Felt 1 micron filter bags - Depth filtration

Key Features:

• Multi-layer felt construction for extended service life
• Temperature Rating: Up to 120°C
• Construction: Thermally welded seams for maximum integrity
• Finish: Glazed surface prevents fibre migration
• Food Contact Safe: EC Regulation 1935/2004 compliant

Collar Configurations

Universal W Collar

Standard 1 micron filter bags with Universal W Collar for maximum
compatibility:

• Housing Compatibility: Standard 7" and 4" bag filter housings
• Material: Robust moulded polypropylene
• Sealing Performance: Positive leak-proof seal
• Universal Fit: Compatible with most industry standard bag filter housings

H Collar (Eaton/GAF Type)

Specialised 1 micron filter socks for Eaton/GAF systems:

• Optimized Design: Specifically engineered for Eaton/GAF bag filter
  housings
• Enhanced Sealing: Superior fit and seal performance
• Material: Durable polypropylene construction

Special Order Options

• Stainless Steel Ring: Enhanced chemical and temperature resistance
• Drawstring Closure: Alternative sealing method for tying filter bags directly to pipework
• Custom Configurations: Tailored solutions for unique requirements

Quality Manufacturing & Compliance

All 1 micron filter bags are produced under
strict quality standards:

• EU Manufacturing with ISO 9001 certification
• Controlled production environment ensures consistency
• Individual wrapping prevents contamination
• Batch traceability for quality assurance
• EC Regulation 1935/2004 for food contact applications
• European Directive 2002/72/EC compliance

Installation & Maintenance Guidelines

Installation Best Practices

1 micron filter bags installation for optimal
performance:

• Clean installation area recommended
• Proper collar alignment ensures leak-free operation
• Gentle handling prevents media damage
• System flush may be beneficial for critical applications

Maintenance & Monitoring

• Change Indicator: Replace when differential pressure reaches 1 bar
• Visual Inspection: Monitor for even loading patterns
• Flow Rate Tracking: Document performance trends
• Service Life: Typically 1 - 8 weeks depending on contamination levels
• Record Keeping: Maintain maintenance logs for optimization

Technical Consultation & Support

Our filtration experts provide comprehensive
support for 1 micron filter bag applications including:

• Application assessment and media selection
• Performance optimization recommendations
• Installation guidance and best practices
• Troubleshooting support for operational challenges
• Custom solutions for unique requirements

Media Selection Guidance: Choose Felt Bags for general particulate load reduction and removal of
deformable particles. Select Mesh Bags for precise particle size exclusion and
surface filtration requirements.

Contact CLARIBag today to discuss your 1 micron filter bag requirements and discover how our fine filtration solutions
can enhance your processes while providing reliable performance and exceptional value.

Why Choose CLARIBag 1 Micron Filter Bags?

Ultra-Fine Performance: Industry-leading 1 micron filtration efficiency for demanding applications requiring exceptional particle removal.

Depth Technology: Advanced media construction provides superior dirt-holding capacity and consistent performance throughout service life.

Regulatory Compliance: Full compliance with food standards for critical applications.

Broad Compatibility: Available in all standard sizes with Universal W and H collar options to fit existing filtration systems.

Quality Assurance: EU manufacturing under ISO 9001 and individual wrapping for contamination prevention.

Technical Expertise: Dedicated support for critical applications with validation assistance and performance optimisation.

Cost-Effective Solution: Superior performance-to-cost ratio compared to alternative ultra-fine filtration methods.

Chemical Compatibility of 1 micron PP felt filter bags

✅Generally Safe

• Acids (dilute & concentrated): Excellent resistance to sulfuric acid, hydrochloric acid, nitric acid (up to ~70%), phosphoric acid, etc.

• Bases / Alkalis: Excellent resistance to sodium hydroxide, potassium hydroxide, ammonium hydroxide, etc.

• Alcohols: Methanol, ethanol, isopropanol, butanol (all safe).

• Oils & Fats: Generally resistant to vegetable oils, animal fats, mineral oils.

• Organic Acids: Acetic, citric, formic, lactic acids—good resistance.

• Most aqueous salt solutions.


⚠️ Limited Resistance

• Oxidizing agents: Concentrated nitric acid (>70%), fuming sulfuric acid, chromic acid, hydrogen peroxide (≥30%) may attack or embrittle PP.

• Halogenated hydrocarbons: Some swelling/softening with dichloromethane, chloroform, carbon tetrachloride.

• Aromatic hydrocarbons: Toluene, xylene, benzene—can cause swelling and stress cracking.

• Strong oxidizing salts: E.g. sodium hypochlorite (bleach) at high concentrations or high temps.

• Ketones & Esters: Limited resistance to acetone, methyl ethyl ketone (MEK), ethyl acetate.
• Hydrocarbons: Limited resistance with fuels, diesel, biodiesel


❌ Not Recommended (Poor Compatibility)

• Strong oxidizers at high concentration/temperature (e.g., fuming nitric acid, aqua regia).

• Halogens: Chlorine, bromine (especially in liquid form).

• Some solvents: Aromatics and chlorinated hydrocarbons will eventually degrade PP with prolonged exposure.


Chemical Compatibility of 1 micron Nylon mesh filter bags

✅ Resistant (Generally Safe)

• Hydrocarbons: Aliphatic (hexane, heptane, mineral oils, lubricants).

• Bases / Alkalis (dilute): Resistant to weak bases and dilute solutions of sodium hydroxide, ammonium hydroxide.

• Alcohols: Methanol, ethanol, isopropanol, butanol.

• Ketones (some): Acetone, MEK—Nylon holds up better than PP to ketones.

• Esters: Ethyl acetate, butyl acetate (moderate resistance).

• Aromatic hydrocarbons (limited): Toluene, xylene—generally more tolerant than PP, but prolonged exposure may still cause softening.

• Halogenated hydrocarbons (some): Trichloroethylene, perchloroethylene—moderate resistance.


⚠️ Limited Resistance

• Strong acids (especially mineral acids): Sulfuric, hydrochloric, nitric acid attack nylon, causing hydrolysis. Even dilute acid will degrade over time.

• Strong bases (hot or concentrated): Sodium hydroxide, potassium hydroxide can hydrolyze Nylon at higher concentrations/temps.

• Oxidizing agents: Hydrogen peroxide (high concentration), sodium hypochlorite (bleach) will degrade Nylon.

• Formic acid & acetic acid (glacial): Can swell or dissolve Nylon.

• Phenols, cresols: Cause significant attack.


❌ Not Recommended (Poor Compatibility)

• Concentrated mineral acids (HCl, H2SO4, HNO3).

• Strong oxidizers (aqua regia, concentrated H₂O₂, chromic acid).

• Halogens (Cl₂, Br₂).

• Formic acid (even dilute can attack).

• Phenolic compounds.

Chemical Compatibility of 1 micron Polyester felt filter bags

✅ Resistant (Generally Safe)

• Dilute acids: Good resistance to dilute sulfuric, hydrochloric, nitric, phosphoric acids.

• Organic acids: Acetic, citric, tartaric, lactic acids — generally good resistance.

• Oils & fats: Stable in vegetable oils, animal fats, and mineral oils.

• Alcohols: Methanol, ethanol, isopropanol, butanol (safe).

• Hydrocarbons: Aliphatic (hexane, heptane, kerosene, mineral spirits).

• Halogenated hydrocarbons (moderate): Chloroform, carbon tetrachloride, dichloromethane — fair resistance, better than Nylon.


⚠️ Limited Resistance

• Bases / Alkalis: Sodium hydroxide, potassium hydroxide (especially hot or concentrated) cause hydrolysis and embrittlement.

• Oxidising agents: Sodium hypochlorite (bleach), hydrogen peroxide (concentrated) — attack PET over time.

• Phenolic compounds: Phenol, cresol — can cause degradation.
• Aromatic hydrocarbons : Toluene, xylene — moderate resistance.


❌ Not Recommended (Poor Compatibility)

• Strong alkalis (caustic soda, potash) at any significant concentration.

• Concentrated mineral acids (hot H₂SO₄, HCl, HNO₃).

• Phenols and strong oxidizers (chromic acid, aqua regia, fuming nitric acid).

• Formic acid and other strong solvents that attack esters.
